A duplex outlet is a common electrical device you see in most homes and offices. It has two separate plug-in spots built into one unit, so you can power two devices at the same time from a single wall opening.
This design makes it convenient and saves space compared to having two separate outlets. You probably use duplex outlets every day without thinking about it.
Understanding what they are can help you manage your home’s electrical setup. It also helps you know when it’s time to add or replace outlets for better function and safety.

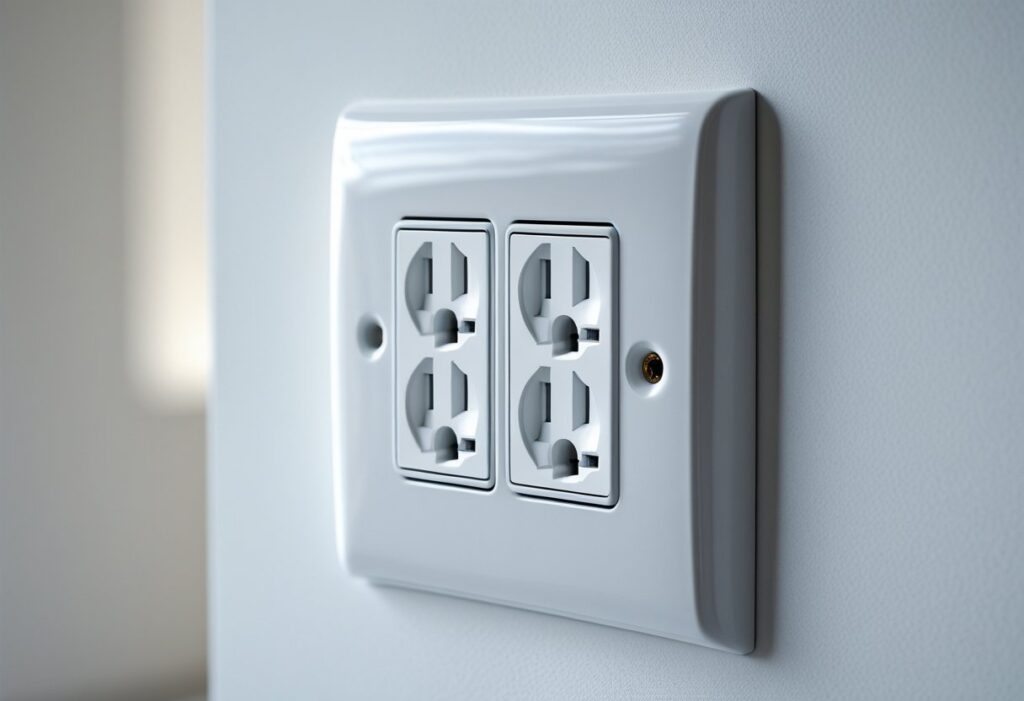

What Is a Duplex Outlet?
A duplex outlet is a very common electrical device found in most homes and buildings. It lets you plug in two devices at the same time through two separate slots.
A duplex outlet is unique because it combines two receptacles in one unit. This feature helps you choose the right outlet for your needs and use it safely.
Duplex Outlet Definition
A duplex outlet is an electrical outlet with two receptacles side by side. Each receptacle has two vertical slots and a round hole for grounding.
This outlet type is usually rated for 15 or 20 amps and supplies 120 volts of power. The grounding hole improves safety by reducing the risk of electric shock.
You can use a duplex outlet to connect two electrical devices at once. They’re designed for standard plugs found on most household electronics and appliances.
How Duplex Outlets Differ from Other Outlets
Single outlets have only one receptacle, but duplex outlets give you double the plugging options. Special outlets like GFCI (Ground Fault Circuit Interrupter) are made for wet areas, while duplex outlets are for general use.
Multi-receptacle outlets have more than two slots, but duplex outlets are the most common and straightforward choice for everyday use.
Common Uses of Duplex Outlets
Duplex outlets are designed for everyday electrical devices like lamps, phone chargers, and small appliances. You’ll typically find them in living rooms, bedrooms, and offices because they handle the power needs of most household gadgets.
They’re also easy to install between two existing outlets if you want extra plug points without much rewiring. Always check the power rating to avoid overloading your circuit when plugging multiple devices into a duplex outlet.
How Duplex Outlets Work
Duplex outlets let you plug in two devices at once using two separate sockets in one unit. They handle electrical current smoothly while maintaining safety through thoughtful design.
Knowing how electricity moves through them and the parts involved helps you understand their function and importance.
Electrical Flow in Duplex Outlets
Electricity flows into your duplex outlet through wires connected to your home’s circuit. The hot wire carries current into the outlet, and the neutral wire completes the circuit by carrying current back.
Each socket inside the duplex outlet is connected so both can deliver power independently. When you plug in a device, the outlet allows current to pass through the prongs, powering your devices.
The outlet is rated for 15 or 20 amps, usually at 120 volts. This flow must be steady and safe to avoid overload and damage.
Wiring and Components
Inside your duplex outlet, you’ll find metal contacts connected to terminal screws for hot, neutral, and sometimes ground wires. The hot wire connects to a brass-colored screw, and the neutral wire connects to a silver-colored screw.
Ground wires attach to a green screw. The duplex outlet’s plastic housing keeps all parts insulated to prevent shocks.
Its two sockets share one internal system but work independently, so you can use both at the same time. Proper wiring ensures each socket gets power without interference.
Safety Features
Duplex outlets include safety features like grounding ports and sometimes built-in circuit breakers, especially if they are GFCI outlets. Grounding helps prevent shock by offering a safe path for stray electricity.
Some outlets also have tamper-resistant shutters. These prevent objects like keys from being inserted, protecting children and pets.
Using the right outlet, installed correctly, helps keep your home safe and reduces risk of fire or shock.
Types of Duplex Outlets
Duplex outlets come in different types designed for specific uses. Some are standard for everyday needs, while others offer extra safety or protection features.
Knowing the differences helps you choose the right outlet for your space.
Standard Duplex Outlets
Standard duplex outlets are what you’ll find in most homes. They have two slots and usually supply 120 volts of power.
These outlets are rated for 15 or 20 amps, which makes them perfect for powering lamps, chargers, and small appliances. Each outlet has two receptacles side by side, allowing you to plug in two devices at once.
They are also the easiest to install and replace. However, they don’t have built-in safety features, so you may want to avoid using them in wet areas like kitchens or bathrooms.
GFCI Duplex Outlets
GFCI stands for Ground Fault Circuit Interrupter. These duplex outlets are important if you need extra protection against electric shocks.
You’ll often find GFCI outlets in places where water is nearby, such as kitchens, bathrooms, garages, and outdoor areas. They work by shutting off power quickly if they detect an imbalance in electrical flow.
This helps prevent serious injuries. GFCI outlets look similar to standard ones but have “Test” and “Reset” buttons on their face.
You should test these outlets regularly to make sure they’re working properly.
Tamper-Resistant Duplex Outlets
Tamper-resistant (TR) duplex outlets are designed especially for homes with children. They include built-in shutters that block foreign objects from being inserted inside the slots.
This reduces the risk of electrical shock if kids try to poke things into the outlet. You’ll recognize these because they have “TR” marked on their face or packaging.
Tamper-resistant outlets are now required by electrical codes in many areas for most new home construction. They offer safety without requiring any special action from you.
Installation and Replacement
Installing or replacing a duplex outlet is a task you can handle with the right tools and clear steps. Safety is important, so turning off power and using proper equipment will keep you secure.
Knowing when to replace an outlet can save you from hazards later.
Tools Needed for Installation
To install a duplex outlet, you’ll need a few basic tools:
- Screwdrivers (flathead and Phillips) to remove outlet covers and secure wiring
- Wire strippers to prepare the wires for connection
- Voltage tester to make sure power is off before you start
- Needle-nose pliers for bending and twisting wires
- Electrical tape to cover exposed wires and connections
- Outlet box if installing a new one between studs or replacing a damaged box
Having all these tools ready can make the job smoother and faster. Safety gear like gloves and goggles is also a good idea.
Step-by-Step Installation Process
Switch off the power to the outlet at your circuit breaker. Use a voltage tester to check that the wires are not live before touching them.
Remove the old outlet cover with a screwdriver. Unscrew the outlet from the electrical box and gently pull it out.
Note how the wires connect—usually, black or red wires connect to brass screws, white wires to silver screws, and the green or bare wire goes to the grounding screw. Disconnect the wires one by one and connect them to the new outlet the same way.
Tighten screws securely but don’t over-tighten. Push the outlet back into the box carefully without pinching wires.
Screw the outlet and cover plate in place. Restore power and test the outlet with a device or outlet tester.
When to Replace a Duplex Outlet
Replace a duplex outlet if it is loose, cracked, or shows signs of burning or discoloration. If the outlet no longer holds plugs firmly or sparks when you plug something in, it’s unsafe and needs replacement.
Outlets that feel warm to the touch or have a buzzing sound also indicate trouble. Replacing an old outlet can improve safety and ensure your devices work properly.
Regular checks of your outlets help catch problems early.
Benefits of Using Duplex Outlets
Duplex outlets offer practical advantages that make them a good choice for most homes and offices. They help you plug in multiple devices, keep your space safe, and work well in many different rooms and settings.
Increased Convenience
With a duplex outlet, you get two sockets in one place. You can power two devices without needing extra adapters or extension cords.
It saves space on your walls and keeps your room less cluttered. You can use duplex outlets in common areas like living rooms, kitchens, and bedrooms.
Since many devices now need power at the same time, having two sockets ready makes daily life easier. You won’t have to unplug one device just to use another.
Installing duplex outlets is straightforward if you follow safety rules and codes. They fit into standard electrical boxes, so upgrading or adding outlets in your home is simple and cost-effective.
Improved Safety
Duplex outlets reduce the need for power strips and adapters that might overload your circuits. Overloading can cause breakers to trip or, worse, electrical fires.
Using a duplex outlet helps you avoid these risks by giving proper power distribution. In wet areas like kitchens or bathrooms, GFCI versions of duplex outlets protect you from shocks.
These safety outlets quickly shut off power if they detect a ground fault. If you need outlets near sinks or appliances, a GFCI duplex outlet is a smart choice.
Proper installation and use of duplex outlets ensure you follow your local electrical codes. This keeps your home safer by meeting required standards for wiring and power capacity.
Versatile Applications
Duplex outlets fit into many different places and uses. They work well in homes, offices, classrooms, and workshops.
Wherever you need to plug in several devices, these outlets provide an easy solution. Because they come in different types—standard, GFCI, AFCI, and more—you can choose the right one for your needs.
For example, GFCI duplex outlets are designed for wet environments, while AFCI outlets help prevent electrical fires in living spaces. You can also find duplex outlets with different amperage ratings.
A 15-amp duplex outlet is common for everyday use, while a 20-amp outlet suits high-power tools or appliances. This lets you match the outlet to your equipment safely.
Choosing the Right Duplex Outlet
Picking the right duplex outlet means thinking about how much power you’ll need and where you plan to use it. Make sure it follows the rules for safety.
These details help you avoid overloading, place outlets where they’re most useful, and stay safe.
Considering Electrical Load
You need to match your duplex outlet to the amount of electricity your devices will use. Most outlets come rated for either 15 amps or 20 amps.
A 15-amp outlet handles regular household devices like lamps and chargers well. If you plan to use heavy appliances like power tools or kitchen equipment, choose a 20-amp outlet.
It can safely power more demanding devices without tripping the circuit breaker. Also, check if the outlet has special features like GFCI protection if it’s near water.
This adds safety for outlets in kitchens or bathrooms by cutting power if a fault occurs.
Assessing Room and Placement
Think about where you will install the duplex outlet. In living rooms and bedrooms, outlets need to be easy to reach for daily use.
Consider locations near desks, tables, or TV stands. In kitchens or work areas, place outlets higher or closer to countertops so you can plug in appliances conveniently.
Avoid putting outlets behind large furniture that blocks access. Spacing is also important.
Electrical codes usually require outlets no more than 12 feet apart along walls in most rooms. This spacing prevents the need for too many extension cords.
Compliance with Electrical Codes
You must follow local and national electrical codes when installing duplex outlets. Codes ensure safety and proper functioning for your home.
For example, outlets in bathrooms and outdoors often need GFCI protection. In areas prone to moisture, these protect you from electric shock.
Outlets must also be properly grounded if you use three-prong plugs. Grounding prevents electrical shock and damage to your devices.
Before installing, check code rules on outlet height, spacing, and type. Following these rules helps keep your home safe and up to standards.
Maintenance and Troubleshooting
Keep your duplex outlet working well by checking it regularly. Know what problems could happen, and understand when to get a professional involved.
Taking care of these details helps keep your home safe and your outlets reliable.
Routine Inspection Tips
Check your duplex outlets every few months. Look for cracks, discoloration, or burn marks on the outlet face.
These signs may mean damage or overheating. Make sure the outlet is firmly attached to the wall.
If it feels loose or wiggles when you plug something in, it needs attention. Test the outlet using a simple outlet tester to check for wiring problems like reversed polarity or grounding issues.
Keep the outlet free from dust and debris. Use a dry cloth or a small brush to clean inside the slots gently.
Never use water or cleaners.
Identifying Common Problems
Sparks when plugging in devices often happen because of loose wiring or dirt inside the outlet. Flickering lights or devices that don’t get power can signal a faulty outlet.
If the outlet feels warm or smells like something is burning, stop using it immediately. Loose connections and worn-out outlets can cause shocks or fires if left unrepaired.
Tripped breakers or flickering lights can also signal electrical problems connected to the outlet. These signs may point to more serious issues inside the electrical box or wiring.
When to Call an Electrician
Call a professional if you see sparks, smoke, or smell burning around your outlet. These problems could cause a fire and need expert attention.
If tightening screws or cleaning the outlet doesn’t fix it, a licensed electrician can safely troubleshoot and repair the problem. Avoid fixing complex wiring issues yourself.
Get help if you need to add more outlets or replace older ones to meet safety standards. Professionals keep your electrical system safe and reliable.
Frequently Asked Questions
You can wire a duplex outlet to connect two devices independently, with a common or switched hot wire. This design allows for multiple setups depending on your needs.
How do I wire a duplex outlet?
Connect the black (hot) wire to the brass screw and the white (neutral) wire to the silver screw. Attach the green or bare copper wire to the ground screw.
You can wire both receptacles to the same circuit or split them for separate controls.
What are the differences between a duplex outlet and a standard outlet?
A duplex outlet has two receptacles in one unit. A standard outlet usually refers to a single receptacle.
Duplex outlets let you plug in two devices where space is limited.
Can you explain the uses of a duplex receptacle?
Duplex receptacles are common in homes and offices. They let you power two devices in one spot.
They save wall space and add convenience. These outlets work well in rooms with many devices, such as kitchens or living rooms.
What does the symbol for a duplex outlet look like?
The symbol usually shows two small circles or rectangles side by side, connected by a line. It represents the two receptacles in one outlet.
Electric diagrams use this symbol to mark where duplex outlets are installed.
What is the distinction between a duplex outlet and a GFCI receptacle?
A GFCI receptacle also has two plugs but includes a safety feature. It protects you from electrical shock by cutting power if it detects a ground fault.
Duplex outlets don’t have this built-in protection.
How does a 2-gang duplex outlet configuration differ from a single receptacle setup?
A 2-gang duplex setup has two duplex outlets side by side in one wall box. You get four plugs from one location.
A single receptacle setup usually has just one duplex or single outlet. This setup offers fewer plugs.
